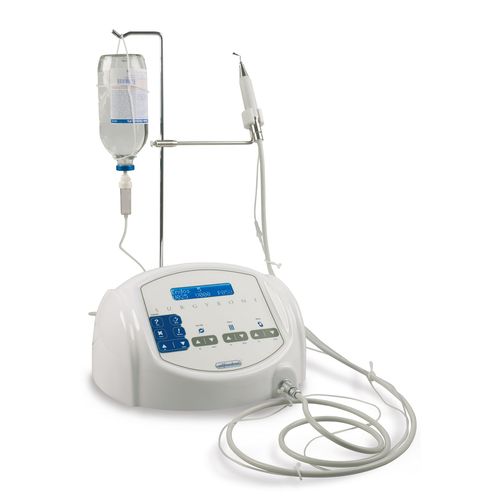

Cutting electrosurgical unit SURGYBONE SB 300

dental surgeryultrasonic

SURGYBONE SB 300 A new generation in ultrasound surgery Surgybone aims at satisfying doctors’ everyday need, including the need to exploit room space at best. Thanks to its extreme versatility, selecting the ENDOS programme, the device can be turned into a highly performing ultrasound equipment. User-friendly, always ready for use, Surgybone exploits piezoelectric technology at 360° with a single handpiece. Wide liquid crystal display to visualize the data set. Direct push-button control for precise and prompt setting. Power regulation according to different insert tips (sharp, blunt, smoothing, endodontic). Maximum cutting precision, avoiding overheating necrosis. Regulation of VIBRA function, with PERCUSSION action and selective cutting. Technology based on ultrasound frequencies that permits highly precise osteotomies, with a constant control of both incision depth and length. Area of use Sinus Lift with crestal approach Extraction Apicectomy Cystectomy Bone Harvesting Expansion crest Schneider membrane detachment Osteoplasy, Osteonomy Implant site preparation Endodontic application Orthodontic Surgery Technical features Power source: 230 V – 50/60 Hz Nominal power consumption: 170 VA Maximum vibration: 200 micron Hand piece cable length: 2000 mm Ultrasound frequency: 20 – 32 KHz Pneumatic footswitch Hydraulic circuit capacity: 0 – 50 ml/min Weight: 4,9 Kg Dimensions: WxDxH: cm 27×23,5×17 DI IM – irrigation set Surgical handpiece Micrometric cutting Selective cutting
