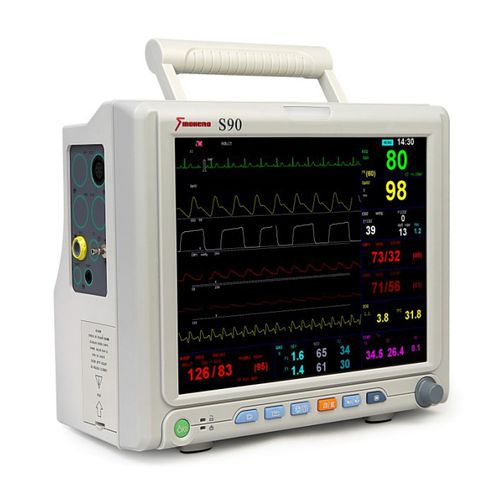

Compact multi-parameter monitor S90portablemodularECG
Add to favorites
Compare this product
Characteristics
- Configuration
- compact, portable, modular
- Measured parameter
- ECG, RESP, TEMP, heart rate, etCO2, NIBP, IBP, SpO2
- Applications
- intensive care, transport
- Technology
- pulse wave analysis
- Options and accessories
- with touchscreen, wireless
- Screen size
12.1 in
- Battery life
240 min
- Weight
4.5 kg
(9.9 lb)- Pulse rate
Min.: 25 unit
Max.: 240 unit
- Oxygen level
Min.: 0 %
Max.: 100 %
Description
Pitch tone to provide audibly recognized SpO2
Rechargeable battery for long time use
Wire net working with Central Monitoring Systems
Technical Specification
Size and Weight
- Product size: 31.8x26.4x15.2cm
- Packing size: 43x32x35cm
- Gross weight: 6.5kg
Power supply
- Power Voltage: AC 100-240V 50/60Hz
- Power Input: ≦85VA
- Safety class: Category I
Thermal Recorder
- Method: Thermal dot array
- Paper width:50mm(1.97 in)
- Paper Speed:12.5/25/50(mm/sec)
- Traces: Maximum 3 tracks
Alarm
- Three Levels: Low, medium and high
- Indication: Auditory and visual
- Setup: Default and custom
- Silence: All alarm can be silenced
- Volume: 45-85 dB measured at 1 meter
Storage & Reviewing
- ECG: 30 minutes one important lead’s ECG waveform
- Alarm: 1800 groups alarm events reviewing
- NIBP: 1000 groups NIBP measurement
- Arrhythmia: 128 groups data(8 seconds ECG waveform)
- Power-off storage: 72 hours trend data & 1 ECG wave form (Option)
