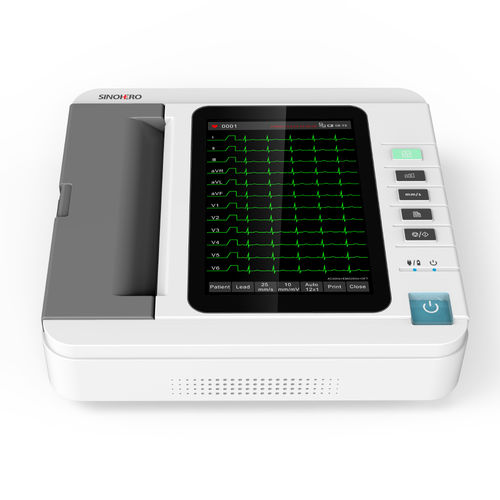

Resting electrocardiograph SE1200

12-channeldigitalwith printer

It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management. Function Parameter ● Input way: Floating and defibrillation protection ● Patient leakage current: 123dB、>140 dB(Open filter) ● Filter: AC Filter(50Hz/60Hz), EMG Filter(25Hz/35Hz),DFT Filter, Low-pass Filter ● Recording way: Thermal printing system ● Specification of recording paper: 210 mm(W)×20 m(L) high-speed thermal paper Gain control(sensitivity): 1.25、2.5、5、10、20、40、10/5、20/10mm/mV and automatic, accuracy is ±5%, Standard sensitivity: 10 mm/mV±0.2 mm/mV ● Auto record: record setup according to auto record format and mode, automatically change leads, automatically measure and analyze. ● Rhythm record: record setup according to rhythm record format and mode, automatically measure and analyze. ● Manual record: record according to manual record format. ● Measurement parameters: HR, PR Interval, P Duration, QRS Duration, T Duration, QT/ QTc Interval, P/QRS /T Axis, R(V5), S(V1), R(V5)+S(V1) amplitude ● Product safety type: Class I type CF defibrillation-proof function applied part ● Polarization resistance voltage: ±950 mV,sensitivity variation range:±5% ● Noise level: ≤12 μVp-p ● ECG signal input sampling frequency: 32 kHz ● Waveform data processing sampling frequency: 1 kHz ● Sampling precision: 24 bit
