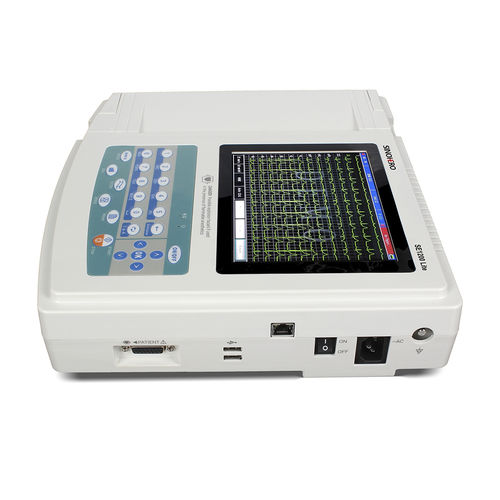

Resting electrocardiograph SE1200 Lite

12-channel3-channel6-channel

Anti-defibrillation and Pacemaker detection Auto measurement and auto diagnosis function Various display and print modes Lead statue map to show ECG leads conductivity Sketch of displaying and closing ECG leads. Indication of leads off Digital thermal pen-free,thermal printer inside Technical Specification Size and Weight - Product size: 34×32×8.5cm - Packing size:45x40x25cm - Net weight: 3.2kg - Gross weight: 5.5kg Power supply - DC and AC power supply - Safety class: Category I, CF type - Hospital grade Display - Resolution:800×600 pixels or higher Battery - Type: 3700mA Rechargeable Lithium inside battery - Operating time under the normal use and full charge:≧120minute - Auto power off when no measurement - AC 100~220V 50/60Hz - Lower battery indicator Filter (standard measure) - AC Filter - EMC Filter - Drift Filter - Digital Signal Processing - Patient leak current:<10µA - Enduring polarization voltage:±300mV - Noise Level:<15µ Vp-p - Frequency Response:0.05Hz-150Hz(-3dB) - Time Constant:≥3.2s - Input Impedance:≥50MΩ - Input Circuit Current:<50nA - Tolerance Voltage:±650mV - CMRR:≥60dB,≥100dB(Adding filter) - Input way:Floating and defibrillation protection Memory - Built-in MSF,can store more than 1000 cases - Digital filter Mode Communication Interface: Ethernet, RS232, USB Recording way: Thermal printing system Recording paper: 210 mm(W)*20m(L) high-speed thermal paper Paper speed: Auto record: 25mm/s, 50mm/s, error:±5% Rhythm record: 25mm/s, 50mm/s, error:±5% Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
