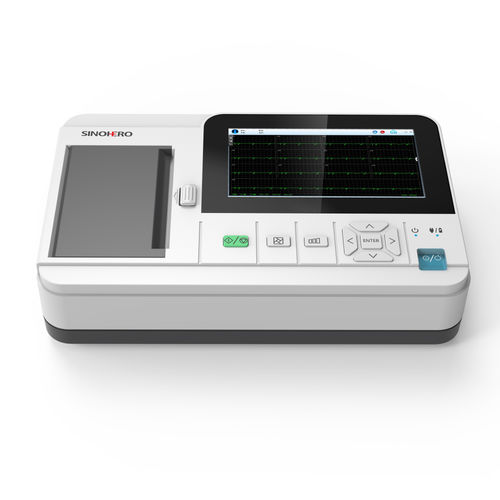

Resting electrocardiograph SE600

6-channeldigitalwith printer

● Input way: Floating and defibrillation protection ● Lead: Standard 12 leads ● Patient leakage current: 125 dB ● Filter: AC Filter(AC50/60 Hz), EMG Filter (25 Hz/35 Hz), DFT Filter, Low-pass Filter ● Recording way: Thermal printing system ● Specification of recording paper: 110 mm(W)×20 m(L) high-speed thermal paper ● Time base ion(paper speed): 5 mm/s, 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s, 100 mm/s, error: ±5% ● Gain control(sensitivity): 2.5、5、10、20、40、10/5、20/10 mm/mV, accuracy is ±2%; Standard sensitivity: 10 mm/mV±0.2 mm/mV ● Auto record: record setup according to auto record format and mode, automatically change leads, automatically measure and analyze. ● Rhythm record: record setup according to rhythm record format and mode, automatically measure and analyze. ● Manual record: record according to manual record format. ● Measurement parameters: HR, PR interval, P Duration, QRS Duration, T Duration, QT/QTc interval, P/QRS/T Axis, R(V5), S(V1) and R(V5)+S(V1) amplitude ● Product safety type: Class I type CF defibrillation-proof applied part ● Polarization resistance voltage: ±950 mV ● Noise level: ≤12 µVp-p ● ECG signal input sampling frequency: 32 kHz ● Waveform data processing sampling frequency: 1 kHz ● Sampling precision: 24-bit ● The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected ● Pacing detection channel: all leads ● Accuracy of input signal: ±5% ● Amplitude quantization: ≤5µV/LSB ● Dimension: 315 mm(L)×215 mm(W)×92 mm(H) ● Net Weight: 1.7 kg ● Interchannel time deviation: <100 µs
