3D dental scanner Vinyl Open Air
benchtopstructured lightLED

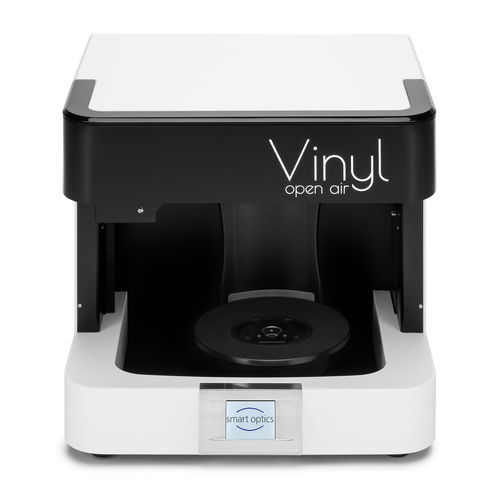

3D dental scanner - Vinyl Open Air - smart optics Sensortechnik GmbH   - benchtop / structured light / LED
3D dental scanner - Vinyl Open Air - smart optics Sensortechnik GmbH   - benchtop / structured light / LED
3D dental scanner - Vinyl Open Air - smart optics Sensortechnik GmbH   - benchtop / structured light / LED - image - 2
Add to favorites
Compare this product


Characteristics

Applications
dental
Configuration
benchtop
Technology
structured light
Light source
LED, white light
File format
STL, PLY
Operating system
Windows
Scanning duration (full arch)

29 s, 41 s, 67 s

Accuracy

6 µm

Length

430 mm
(16.9 in)

Width

455 mm
(17.9 in)

Depth

420 mm
(16.5 in)

Weight

23 kg
(50.7 lb)

Description

Scanning on an open stage – this is the motto of the Vinyl Open Air, because this Vinyl scanner is completely open. Technically, it is at the same level of the Vinyl thanks to the suitable 1.3 megapixel camera and the structured light triangulation with white light LEDs. As the most affordable model of the Vinyl series, the Open Air comes with a basic set of accessories. It doesn’t take more than this to work on projects with common dental indications or orthodontic cases – including articulator scans. The compact design with the distinctive cube shape is a characteristic feature of smart optics Vinyl scanners. The series owes its name to the large black system plate, strikingly reminiscent of a turntable. Equipped with a fully automatic Z-axis and a user-friendly 180° opening, the dental desktop scanners provide convenient space for all dental objects, from individual segments through jaw models, full and partial impressions (also of toothless jaws) up to articulators of various brands. Highest quality combined with German engineering, reliability in harmony with longevity – these are the requirements that smart optics accomplishes with the Vinyl Series. Tried and tested LED sensor technology and smart motorization allow high-precision, fast measurements. Technical innovations from our own research as well as the implementation of customer requests ensure that the Vinyl Series evolves constantly to meet the growing demands both of today and the future. An extensive range of accessories for models and impressions can be added or purchased later for both basic and additional modules.
