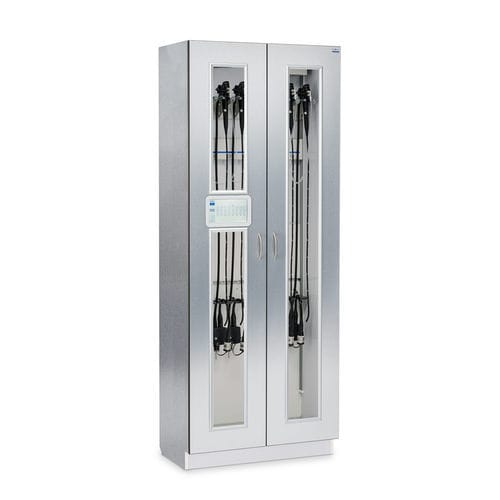

Drying cabinet Ventaire™

hospitalwith doorstainless steel

The 19.25”-deep Ventaire scope drying and tracking cabinet comes in 3 widths and 3 heights and with solid-front or tempered glass doors. It includes a Ventaire scope drying and tracking unit, fan ventilation unit, filter and tubes, and 10” touchscreen. The easy-to-operate system continuously filters air into internal scope channels to efficiently and thoroughly dry scopes and features timed drying and venting cycles and scope tracking management. HEPA filtered air removes 99.9% of particles less than 0.1µm. An optional subscription to the Smart Solutions website or purchase of a Ventaire Network Connector Device allows remote monitoring of scope activity. Compressor air output: up to 45 LPM Compressor decibels: 62 dB, with doors closed Electrical requirements for drying and tracking unit: 120 VAC, 60Hz, 15-amp standard duplex receptacle Includes a hospital-grade, UL-approved, 125V, 10-amp, 10-foot-long power cord with Y-splitter to power both the drying and tracking unit and the fan unit Electrical requirements for cabinet fan ventilation unit (SFVU): Voltage Rating: 115VAC Watts: 13.0W Amps: 0.19A Compressor: Powder-coated steel Manifold: Powder-coated steel Tubing: Soft PVC Compressor tube and air filter: Soft PVC tube and polypropylene filter Connectors (vary by type): HDPE, white nylon, white polypropylene, and clear polycarbonate Cabinet shell: AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish Stainless Steel: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces
