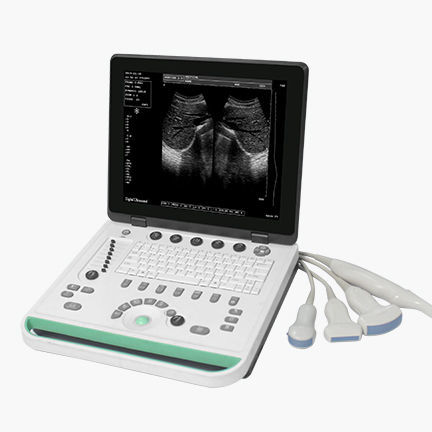

Portable ultrasound system SS-7

for multipurpose ultrasound imagingB/Wbuilt-in console

-15 inch LCD screen -Full digital imaging technology, crystal-clear Image -Pretty and light -8 segment TGC -Broadband multi-frequency probes -2 probe connector -Silica gel backlight gravure laser keyboard -USB flash disk large volume image storage -Cine loop -Built-in battery(can work more than 5 hours) -High Cost-effective -Display size: 15 inch LCD screen -Display mode: B, B+B, B+M, M, 4B -Scanning range: Convex array 60°~150° -Amplification factor：1.0, 1.2, 1.5,2.0 -Gain control: 8 segments TGC and overall gain can be adjusted respectively -Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc -Image gray-scale: 256 levels -Scanning line number: 512 lines/frame -Frame rate: 30 frames/second -Digital scanning conversion: 512×512×8 bits -Memory: USB flash disk large volume image storage -Conventional measurements: distance, perimeter, area, volume -Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc. -Report function: auto make report -Built-in battery capacity: can work more than 5 hours -Output interface: USB port, video.
