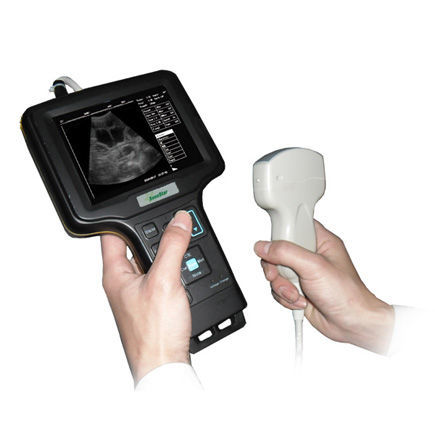

Hand-held veterinary ultrasound system V6

multipurposeB/W

-5.6 inch TFT screen -Pretty and very light -Full digital imaging technology, crystal-clear Image -Simple and convention on operation -Low power consumption -8G Large volume storage image -Built-in battery -Solid shell and structure -Waterproof -Low cost -Display screen: 5.6" TFT colr screen -Scanning manner: Electronic convex array, electronic linear array -Working frequency: 2.0MHz~10MHz -Display mode: B, B+B -Scanning range: Convex array 60°~150° -Amplification factor：1.0, 1.2, 1.5,2.0 -Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc -Conventional measurements: distance, perimeter, area, volume -Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement -Image gray-scale: 256 levels -Scanning line number: 512 lines/frame -Frame rate: 30 frames/second -Digital scanning conversion: 512×512×8 bits -Battery capacity: 3000mAH/7.4V,can work more than 2 hours -Memory capacity: 8GB, can optional to 32GB -Report function: auto make report -Output interface: USB port, video. -Overall size: 225mm×145mm×25mm -Weight: 900g(with battery) -Waterproof: IP65
