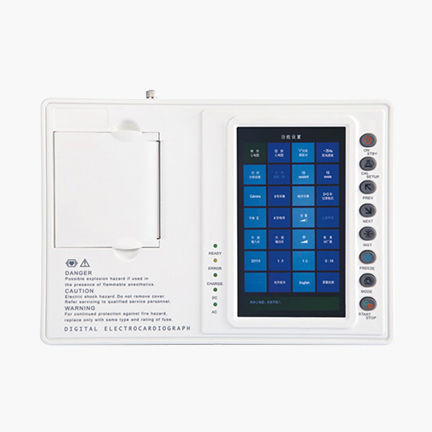

Resting electrocardiograph SE-3D

3-channeldigitalwith printer

· ECG(SE-3D) is designed with a high-resolution thermal printer featuring 8dot/mm vertical resolution and 40dot/mm horizontal resolution(at 25mm/s) speed and filter as well as related marks. · Simultaneously 12 lead signal acquisitions. · Digital filter to prevent baseline drift and automatic positioning of the baseline provide accurate ECG trace. · Able to detect and alarm on electrode disconnection. · LED indicator and LCD display show operation status of the unit. · Isolated input circuit guarantees safety standard in compliance to Class I type CF. · AC/Rechargeable battery supports continuous operation when AC power supply is not available. For the battery operation, ECG(SE-3D) is equipped with a battery charger and a system for battery capacity management and protection. · Compact size. Lead: Standard or Cabrera 12 leads, Simultaneously 12 leads acquisition Sampling rate 1000Hz(1ms) Frequency Response: 0.05 ~ 150Hz Time Constant: ≥3.2s CMRR: > 100dB Input Circuit: < 0.1 mA Noise Level: Polarization Voltage: ≤ 8 m Vp∽p ± 500mV Sensitivity valve: 20 mV Calibration Voltage: 1mV ± 0% Filter: AC: 50Hz-20dB(or 60Hz); EMG filter:25-35-45Hz-3dB; Drift filter: 0.5Hz -3dB Sensitivity: 1.25, 2.5, 5, 10, 20,40mm/mV± 2% Paper Speed: 5, 6.25, 10, 12.5, 25, 50mm/s ± 3% Recording MODE: Thermal array printer 8 dot/mm(Vertical) 40 dot/mm(Horizontal, 25mm/s) Paper Size: 80mm´15m, thermal roll paper
