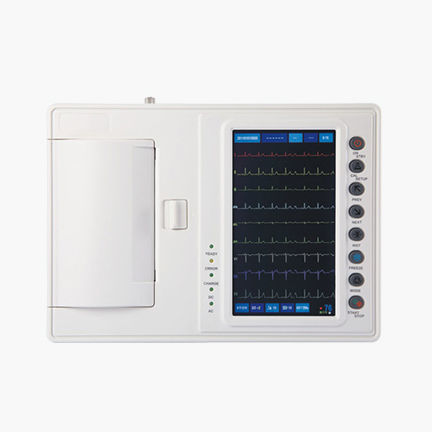

Resting electrocardiograph SE-6B

12-channeldigitalwith printer

- SE-6B is designed with a high-resolution thermal printer featuring 8dot/mm vertical resolution and 40dot/mm horizontal resolution(at 25mm/s) speed and filter as well as related marks. - Simultaneously 12 lead signal acquisitions. - Digital filter to prevent baseline drift and automatic positioning of the baseline provide accurate ECG trace. - Able to detect and alarm on electrode disconnection. - LED indicator and LCD display show operation status of the unit. - Isolated input circuit guarantees safety standard in compliance to Class I type CF. - AC/Rechargeable battery supports continuous operation when AC power supply is not available. For the battery operation, SE-6B is equipped with a battery charger and a system for battery capacity management and protection. - Compact size. Lead: - Standard or Cabrera 12 leads, Simultaneously 12 leads acquisition Sampling rate - 1000Hz(1ms) Frequency Response: - 0.05 ~ 150Hz Time Constant: - ≥3.2s CMRR: - > 100dB Input Circuit: - < 0.1 mA Noise Level: Polarization Voltage: - ≤ 8 m Vp∽p ± 500mV Sensitivity valve: - 20 mV Calibration Voltage: - 1mV ± 0% Filter: - AC: 50Hz-20dB(or 60Hz); EMG filter:25-35-45Hz-3dB; Drift filter: 0.5Hz -3dB Sensitivity: - 1.25, 2.5, 5, 10, 20,40mm/mV± 2% Paper Speed: - 5, 6.25, 10, 12.5, 25, 50mm/s ± 3% Recording MODE: - Thermal array printer 8 dot/mm(Vertical) 40 dot/mm(Horizontal, 25mm/s) Paper Size: - 110mm´15m, thermal roll paper
