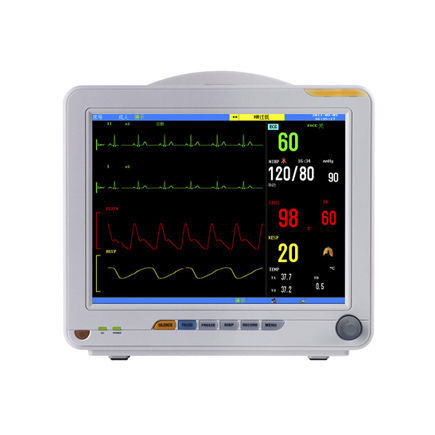

Portable patient monitor SM-500S

ECGRESPTEMP

-12" color TFT display, up to 12 waveforms -One level menu, easy to use -Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional) -Maximum 720 hour graphic and tabular trends of all parameters -Built-in recorder and battery -Suitable for adult, pediatric and neonatal patient -Arrhythmia analysis, ST calculation, Pace analysis -Anti-ESU, anti- defibrillator -Standard network interface, can connect to Central monitor system 1. 12” widescreen TFT, Resolution ratio: 800×600, up to 12 waveforms ; 2. Display ECG, SpO2, pulse rate, NIBP, respiration, temperature 3. Plumbic acid battery. 1. Recorder(Built-in) 2. CO2 3. Anesthesia depth SFDA classification - Class II Anti-electroshock degree - Class I equipment with internal power supply Anti-electroshock degree - TEMP/SpO2/NIBP： ECG/RESP BF CF Explosion proof level - Ordinary equipment，without explosion proof Harmful liquid proof degree - Ordinary equipment，without liquid proof Working system - Continuous running equipment
