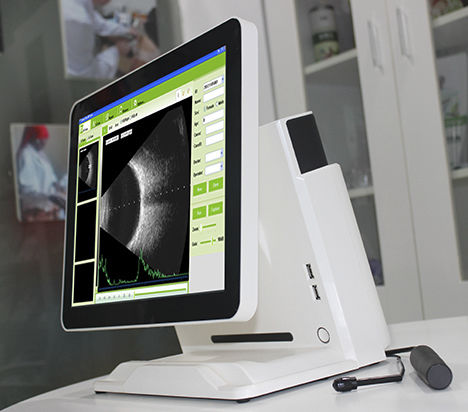

On-platform, tabletop ultrasound system SAB-500

for ophthalmic ultrasound imagingB/W

SAB-500 A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well. B scan: Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless Scanning Mode: Sector Scanning Magnify：Multi continuous magnification,Real-Time magnification Resolution: Lateral ≤0.3mm; Vertical≤0.2mm Geometry position precision: Lateral ≤10%; Vertical≤5% Depth:60mm Enhance the part of vitreous body and retina Gain of probe：30dB-105dB Scanning Angle:53° Gray Scale: 256 False Color: Multi colors. OCT measurement type: multigroup distances, perimeters and areas Image postprocessing: multiple curves processing, Pseudo-color processing curve Movies: 100 images movie review, AVI JPG format image output A scan: Frequency:10MHz, with LED Depth: 40mm Precision:±0.05 mm Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average Eye mode: Phakic / Aphakic / Dense / Various IOL IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS Stat. Calculation: Average and standard deviation Store: 10 Scanning results for each eye Others: Display Mode :B, B+B, B+A, A Hint: preset keyword Case Search：Multi-keywords Screen: 15 inch LCD Built-in battery: can use 4 hours User-defined report template poor credit secured loans
