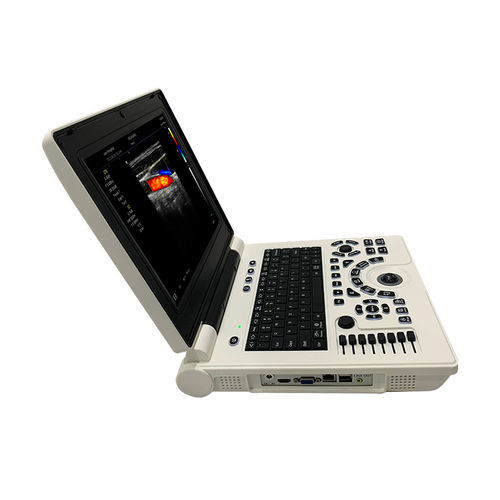

Portable ultrasound system C2for multipurpose ultrasound imagingcolor doppler12-inch
Add to favorites
Compare this product
Characteristics
- Ergonomics
- portable
- Application
- for multipurpose ultrasound imaging
- Imaging modes
- color doppler
- Screen size
- 12-inch
- Probe frequency
Max.: 12 MHz
Min.: 2 MHz
- Weight
6.5 kg
(14.33 lb)- Height
66 mm
(2.6 in)- Depth
308 mm
(12.1 in)
Description
ImagingModes:·B·B+B·4B·B+M·B-
steer(note)·ColorDoppler(CFM)·PowerDoppler(PDI)·PulsedWaveDoppler(PW)·T
Imaging Modes:
·B
·B+B
·4B
·B+M
·B-steer (note)
·Power Doppler (PDI)
·Pulsed Wave Doppler (PW)
·Tissue Harmonic Imaging (THI)
Note. 40mm and less linear probes only.
Transducers:
electronic linear
electronic convex
electronic microconvex
scanning depth: 2-28 cm
multifrequency
automatic transducer recognition
number of ports: 2
Patient Archiving:
Patient information,archive database
Document type:Frozen images,Live images,Reports
Export function:Archiving to DICOM network,USB drive.
Format:BMP,JPG,AVI,MP4
Image Annotation:
Alphanumeric
Adjustable annotation arrow
Labels and comments
Bodymarks
Patient and hospital IDs
Real time clock showing data and time
Measurement facilities
Trackball(point,move,measure)
Pro packages:General,OB/Gyn,Urology,Cardiac
Connection possibilities:
Signal output:Audio,video,VGA,HDMI
Communication: 2*USB, DICOM
Power:
Input voltage: 100-240V,50/60Hz
19V,3A,DC Adapter
battery powered:
battery type: Li-Ion technology (optional)
battery life: 2 hr (actual battery life will vary depending on scan mode)
Dimensions,Weight:
depth:310mm
Catalogs
C2 English catalog
2 Pages
