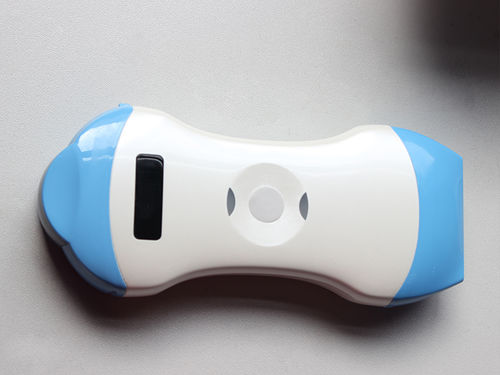

Hand-held ultrasound system PalmUS

for multipurpose ultrasound imagingcolor dopplerwireless probe

5ML 2in1 palm doppler ultrasound micro-convex/linear dual-head wireless probe type color doppler ultrasound scanner Specifications: • Scan mode: Electronic Array, convex with cardiac namely phased array or linear array scanning; • Frequency: convex probe 5/7MHz, linear probe 7.5/10MHz • Elements: 128 elements • Scanning Depth: Convex 90-305mm, Linear 20-100mm, adjustable • Field of view: Micro-Convex R20, Linear L40 • Screen: Smart phone or tablet screen • Supporting system: iOS, Android, Windows • Display mode: B, B/M, Color, PDI, PW • Frame rate: 18f/s • Gain: 30db-105db • Dynamic Range: 40/50/60/70/80/90/100/110 • Noise reduction: 0-1-2-3-4 • Image gray scale: 256 level • Image/Video Storage: Store on mobile phones, Tablet PC • Measure: distance, area, obstetrics and other; • Power: by built-in lithium battery, 2800mAh • Battery working time: 3hours • Size/Net Weight: 156mm×60mm×20mm, 250g
