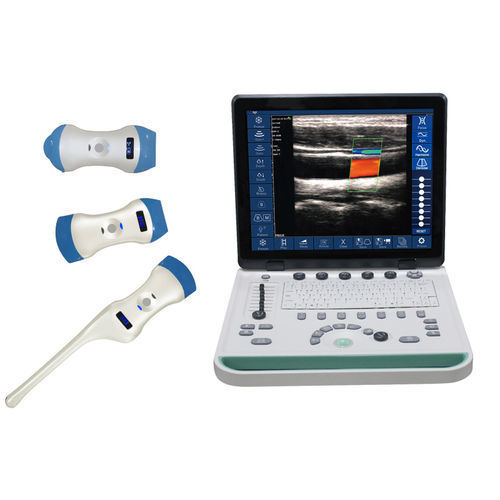

Portable ultrasound system C5W

for multipurpose ultrasound imagingcolor doppler15-inch

-Superlow price, high cost-effective -Probe wireless connect, freely operation -B, B/M, B+Color, B+PDI, B+PW multiple imaging modes -Windows system based, easy to extend function include remote diagnosis -Supporting various USB ink/laser printers Specification: -Screen: 15inch LCD -image mode: B, B/M, B+Color, B+PDI, B+PW -Channel of ultrasound circuit board: 32/64(different model probe) -Probe Connect: Wireless connect, freely operation -Probe Type: Convex, Microconvex, Linear, Small Linear, Transvaginal, Phased array(coming soon), single head or double(the heads can select two in above type) -Probe element: 128/192(different model probe) -Probe frequency and scan depth, angle/width: Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60° Linear head 7.5MHz/10MHz, 20/40/60/100mm, 40mm Small Linear head 10MHz/14MHz, 20/30/40/55mm, 25mm Microconvex head 3.5MHz/5MHz, 90/130/160/200mm, 88° Transvaginal head 6.5MHz/8MHz, 40/60/80/100mm, 149° -Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF -Cineplay: auto and manual, frames can set as 100/200/500/1000 -Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. -Measure: Length, Area, Angle, heart rate, Obstetrics -operation system: Windows -Image frame rate: 18 frames/second -Image save: jpg, avi and DICOM format, store volume 120G -Image and report print: can work with most model ink/laser printer -Remote diagnosis: can install any remote diagnosis software and work
