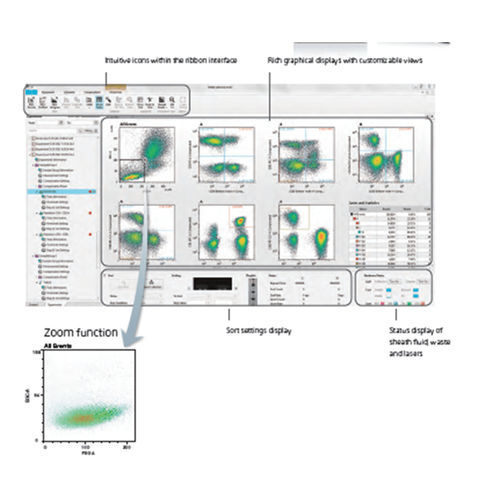

Software, sensors, and CoreFinder patented technology provide automation across the workflow from set-up to shutdown to ensure consistency, save time and improve the accuracy of results. The interface is designed with ribbon tabs that logically organize features to make them rapidly accessible. An experiment-centric approach makes the software easy to teach, learn, and use. Software wizards include step-wise workflows that guide users through start up, multicolor compensation, sorting, and system cleaning. Since the system simplifies even advanced sorting techniques, it can be used by researchers with little sorting experience. System Startup Upon start up, the system initialization includes diagnostics that ensure all subsystems are properly working. Once verified, the system status and a green ready message are displayed on the LCD monitor on the front of the instrument. Initial Instrument Set-up, Precision Alignment, and Calibrations The set up wizard guides researchers through the process of loading a sorting chip, selecting lasers, and inserting the optical filters required. Fluidics Check When complete, the fluidics check starts, and sheath fluid droplets appear from the tip of the sample probe. If needed, de-bubble and sample line cleaning wizards can be run. Once complete, the auto calibration screen is displayed. Alignment and Calibrations The system automatically and precisely aligns the sorting chip to the lasers, calibrates the droplets, and side streams and estimates the drop delay using AutoSetup beads. Experiment Settings Users can create an experiment by selecting a new template,
