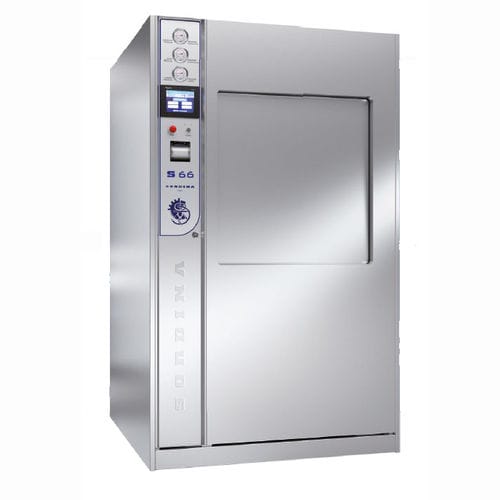

Medical sterilizer S series

steambenchtopautomatic

The essential and meticulous lines correspond to a project in which each single detail has been accurately developed for the highest possible level of functionality. The new generation S6 range of sterilizers, with saturated steam, have a very large sterilization chamber wrapped in cladding and insulated with a melamine based resin with a high insulation power so that the maximum temperature of the external surfaces does not exceed 40°C. The chamber is made from austenitic titanium stainless steel AISI316Ti, with a 10- year warranty, and complies with the strictest safety norms with a chamber thickness of 8mm. The cladding may be made from austenitic titanium stainless steel AISI 316Ti upon request, as a standard it is supplied in AISI 304 high resistant stainless steel. All of the models are available in a configuration with a single or double gate (P version) with pneumatic movement and with a system that guarantees silence and safety. Movement of the door is regulated by touch-sensitive buttons on the relative touch-screen control panel. Graphic colour touch-screen display 5.7” LCD STN 320X240 pixel. All of the through versions (dual gate) are fitted with a second graphic colour touch screen 3.8” LCD TFT 320X240 pixel on the sterile side. The entire structure of the supporting frame and the external panels are also made from high resistant AISI 304 stainless steel, as well as the tubes and joints. MAINTENANCE Easy access for maintenance and controls: ordinary maintenance can be carried out from the front (both sides) thanks to the completely extractable switchboard with telescopic guides.
