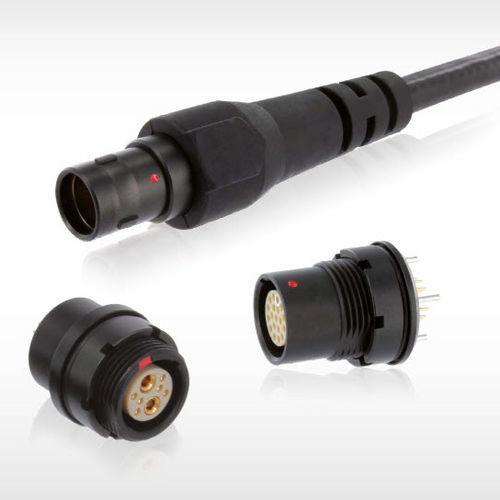

Coaxial connector JDX series

for medical deviceswaterproofcompact

Sealed Breakaway Connector Key features and benefits Quick release: Breakaway design Compact: Lightweight and High density Waterproof: IP 68 in mated and unmated conditions Rugged: Resist high vibration and high temperatures Hybrid: Mixed Power & Signal Contact layouts Description JDX series offers a quick release solution for both indoor and outdoor applications. Its breakaway system eliminates the need for a manually unlocking. It disengages at specified pull force levels to ensure a safe & quick disconnect if the cable becomes entangled. This range is rugged for high vibrations, shock environments and high temperatures. In addition it was designed to allow access in tight applications due to its small size and light weight. Rated IP68 in mated and unmated conditions, this connector will protect your equipment and makes it ideal for outdoor applications. Hybrid layouts including power and signal contacts are also available with JDX housings. It reduces the system complexity and the subsequent consumption of valuable space and installation cost. Technical Data Operating temperature range: -40° + 125°C Durability : > 2500 cycles IP68 in mated and unmated condition Vibration : 10 to 2000 Hzy - 15 g Shock : 50g duration 6ms Salt Spray Resistance: 96 hours RoHS REACH
