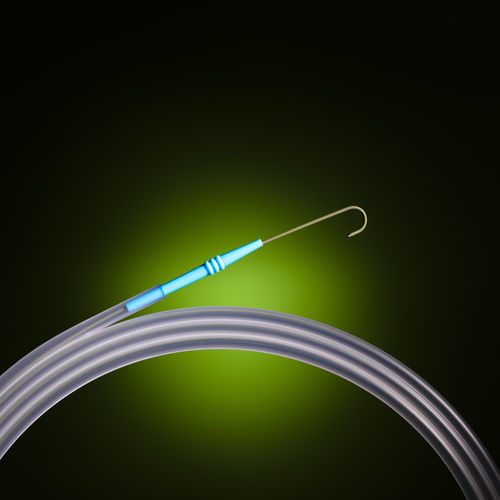

Catheter guidewire J3-C-035-150

vesical

Global provider of medical devices, plastics solutions and pharmaceutical systems Accoat Guide Wire – Seldinger Dimensions Ø 0.018” / 0.46 mm Ø 0.021” / 0.54 mm Ø 0.025” / 0.64 mm Ø 0.028” / 0.72 mm Ø 0.032” / 0.82 mm Ø 0.035” / 0.89 mm Ø 0.038” / 0.97 mm Length 20 – 450 cm Surface Stainless steel PTFE coated Distal tip form Straight tip J-tip radius: 1,5 – 3 – 6 – 15 mm Distal flexible length Standard 4,5 cm flexible tip Shaft stiffness Standard Stiff Extra stiff Super stiff (Extra stiff & Super stiff not available in dim: 0.018”; 0.021”; 0.025”) Markers Uncoated stainless steel OEM Length 30-150 cm 1 mm wide surface markers 10 cm step Description of item code (H/X/X)-S/Jr–(C)–0xx-L (example: J3-C-035-150) H Stiff guide wire H-X Extra Stiff guide wire H-X-X Super Stiff guide wire S Straight tip Jr J-tip radius J1.5 mm J3 mm J6 mm J15 mm C PTFE coated Without C Stainless steel M Surface marker 0xx Diameter of the guide wire L Length of the guide wire 20 – 450 cm 018: 0.018” (0.46 mm) 021: 0.021” (0.54 mm) 025: 0.025” (0.64 mm) 028: 0.028” (0.72 mm) 032: 0.032” (0.82 mm) 035: 0.035” (0.89 mm) 038: 0.038” (0.97 mm)
