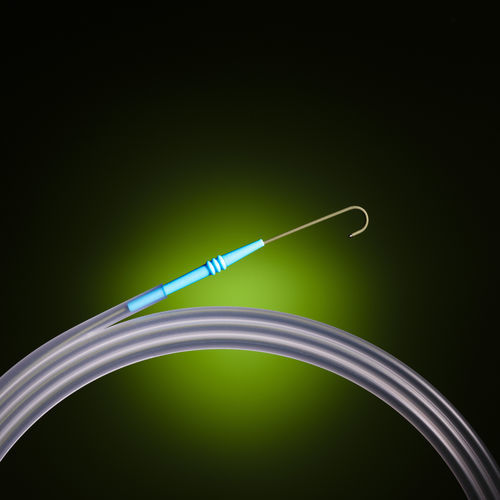

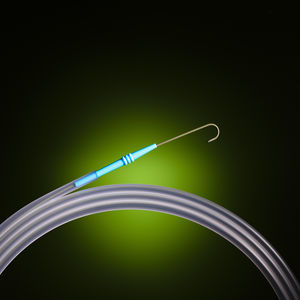

Catheter guidewire D-S-J3-C-035-150

vesical

Global provider of medical devices, plastics solutions and pharmaceutical systems Accoat Guide Wire – Seldinger Double Ended Dimensions Ø 0.025” / 0.64 mm Ø 0.032” / 0.82 mm Ø 0.035” / 0.89 mm Ø 0.038” / 0.97 mm Length 30 – 450 cm Surface Stainless steel PTFE coated Tip form J-tip radius: 1,5 – 3 – 6 – 15 mm in one end and straight tip in the other Flexible tip length Standard 5 cm flexible tip Shaft stiffness Standard Stiff Markers Uncoated stainless steel OEM Length 30-150 cm 1 mm wide surface markers 10 cm step Description of item code (H)-D-S-Jr–(C)–0xx-L (example: D-S-J3-C-035-150) H Stiff guide wire D Double ended (flexible tip in both ends) S Straight tip (one end) Jr J-tip radius (the other end) J1.5 mm J3 mm J6 mm J15 mm C PTFE coated Without C Stainless steel M Surface marker 0xx Diameter of the guide wire 025: 0.025” (0.64 mm) 032: 0.032” (0.82 mm) 035: 0.035” (0.89 mm) 038: 0.038” (0.97 mm) L Length of the guide wire 30 - 450 cm
