Catheter guidewire HY-N-A-ST-035-D-150

vesicalhydrophilic

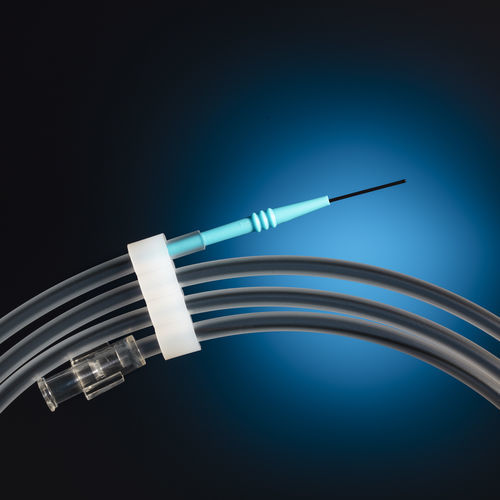

Global provider of medical devices, plastics solutions and pharmaceutical systems Poseidon Hydrophilic Nitinol Guide Wire Dimensions Ø 0.018” / 0.46 mm Ø 0.025” / 0.64 mm Ø 0.032” / 0.82 mm Ø 0.035” / 0.89 mm Ø 0.038” / 0.97 mm Length 30 – 260 cm Surface Hydrophilic coated - Black Distal tip form Straight Reshapable Angled Shaft stiffness Standard Stiff (Stiff not available in dim: 0.018”) Tip stiffness Floppy Soft Standard Speciality Guide Wire: Double Ended Flexible Tip One end angled standard tip, other end straight soft tip. Stiff shaft stiffness. Available dimension 0.035", length 150 and 180 cm. Description of item code HY – N – S/R/A – ST/SO/F – 0xx – D/H – L (example: HY-N-A-ST-035-D-150) DE Double ended HY Hydrophilic coating N Nitinol core S Straight tip R Reshapable tip A Angled tip ST Standard tip stiffness SO Soft tip stiffness F Floppy tip stiffness 0xx Diameter of the guide wire 018: 0.018” (0.46 mm) 025: 0.025” (0.64 mm) 032: 0.032” (0.82 mm) 035: 0.035” (0.89 mm) 038: 0.038” (0.97 mm) H Stiff shaft D Standard shaft L Length of the guide wire 30 - 260 cm
