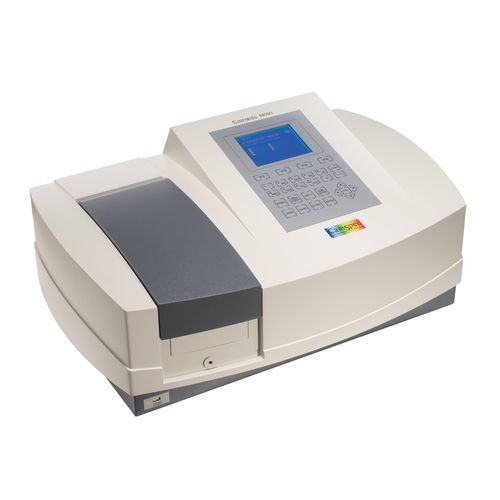

UV-vis spectrometer M501

single-beamtungstenhalogen

Models available with either 2nm or 4nm bandpass. Local or remote control via PC software and USB interface for transfer of results. Complies with UKCA and CE requirements for safety and ESD/EMC emission and susceptibility. Exceptional sensitivity, resolution, stray light, noise and drift specifications. Large range of accessories for laboratory automation and specific tests. Calibrated in the UK by qualified engineers using international standards for wavelength, absorbance, resolution and stray light. Operating Modes Basic Mode (Abs, %T, Conc) Quantitative (concentration calibration curves) Wavelength Scanning Kinetics (including timedrive) DNA/Protein Multi-Wavelength Performance Validation Software and PC Control Local control with wipe-clean membrane keypad Remote control via PC CamSpec UV-Vis Analyst application software Pharmacopoeias The CamSpec M501 passes the following pharmacopoeia tests: Potassium Chloride stray light test Toluene in Hexane resolution test Holmium Perchlorate solution wavelength test Potassium Dichromate absorbance test Technical Specifications Detectors - Silicon Photodiode Stability - ±0.0005Abs@500nm Sample Compartment - Fits 100mm path length cuvette with optional holder Standard Cell Holder - 4 position 10mm cell changer Zero Drift - <0.003A per hour after warm up Bandpass - 2nm or 4nm Stray Light - <0.1% @ 220nm&340nm Photometric Accuracy - ±0.5% Photometric Range - 0-200%T,-0.3-.2.8A Printer Interface - Bluetooth Power Requirements - 100V-240V AC, 50Hz/60Hz
