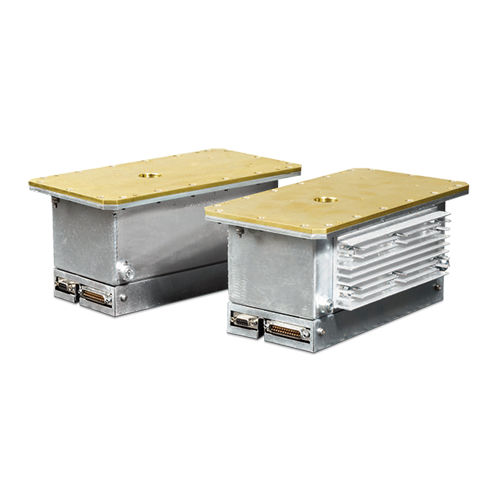

Interventional fluoroscopy X-ray generator XRB011

Integrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control Electronics Compact & Lightweight Can be Mounted in Any Physical Orientation Analog or Digital Control Interface Spellman’s XRB011 Series of Monoblock® X-Ray sources are designed for OEM applications powering its internal X-Ray tube up to 80kV at 20W and 80kV at 50W. Features like 24Vdc input voltage, small package size, standard analog interface and RS-232/Ethernet digital interface simplify integrating the XRB011 into your X-Ray system. Proprietary emission control circuitry provides excellent regulation of X-Ray tube current, along with outstanding stability and performance. Typical applications: Medical X-Ray: Fluoroscopy and Radiography for Extremities, Specimen Radiography. Pulsed Fluoroscopy (contact Spellman sales) Industrial X-Ray: Component inspection and Non-Destructive Testing SPECIFICATIONS X-Ray Characteristics: Tube Type: Micro focus tube Focal Spot: 33µm Nominal, 50µm max. (IEC 336) Beam Filter: Ultem 0.060. (1.5mm) Oil 0.175. (4.4mm) Beam Geometry: Symmetrical 40° cone Input Voltage: 20W: 24Vdc ±1V @ 2.5A 50W: 24Vdc ±1V @ 4A X-Ray Tube Voltage: Nominal X-Ray tube voltage is adjustable between 35kV to 80kV X-Ray Tube Current: 20W: 0-250µA over specified tube voltage range 50W: 0-700µA over specified tube voltage range Voltage Regulation: Line: ±0.5% for a ±1V change of nominal input line voltage Load: ±0.1% for a load change of 25µA to maximum rated current Voltage Accuracy: Voltage measured across the X-Ray tube is within ±1% of the programmed value Voltage Risetime: Ramp time shall be =250ms from 10% to 90% of maximum rated output voltage
