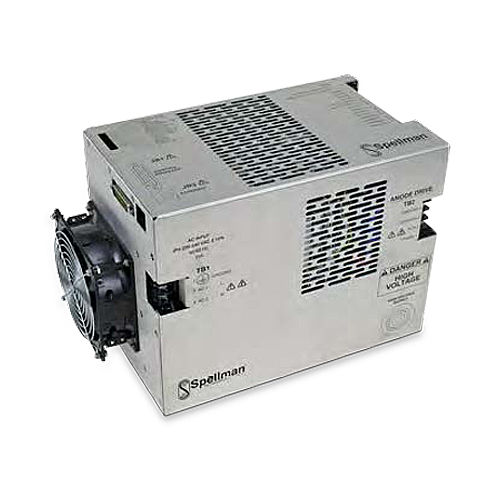

Mammography X-ray generator PMX

equipment-mounted

Compact Space Saving Modular Format Fast Rise and Fall Times Help Minimize Unnecessary Patient Radiation Exposure Dual Speed Starter, Boost/Brake Capability RS-232 and Optional Ethernet Interfaces Spellman’s PMX is a high performance X-Ray generator designed specifically for mammography applications including FFDM and DBT. It features 2 and 3 point expo­sure modes as well as smart AEC with a pre-exposure. The PMX is a 5kW high frequency X-Ray generator integrated with a dual filament power supply, and a dual-speed X-Ray tube starter. Due to the PMX's superior power conversion technology and inverter design it can provide stable and accurate X-Ray tube high voltage with fast rise and fall times. Smooth system integration of the PMX is accomplished through the use of RS-232 and optional Ethernet digital in­terface, pre-loaded X-Ray tube parameters, easy access interlocks and I/O connections, and internal generator di­agnostics. Optional GUI utility software is also offered to help with initial system integration SPECIFICATIONS Input Voltage: 200-240Vac (±10%), single phase, 50Hz/60Hz Input Current: Minimum 35A service recommended for 5kW operation External EMC Filter (Schaffner FN2070-36-08-36A) required to meet CE/EMC specifications – Not provided Mains Contactor – Not provided Customer is responsible for mains safety disconnection. Polarity: Positive, grounded cathode X-Ray tube Accuracy: 2% (measured per IEC60601-2-45) Reproductibility: <0.5% Rise Time: <1ms to within 98% of the programmed voltage Fall Time: <10ms with a max HV cable length of 8 feet (2.4 meters) Ripple: ≤ 4% p-p Output (Tube) Current/Power: Output Current Range: 10mA to 200mA
