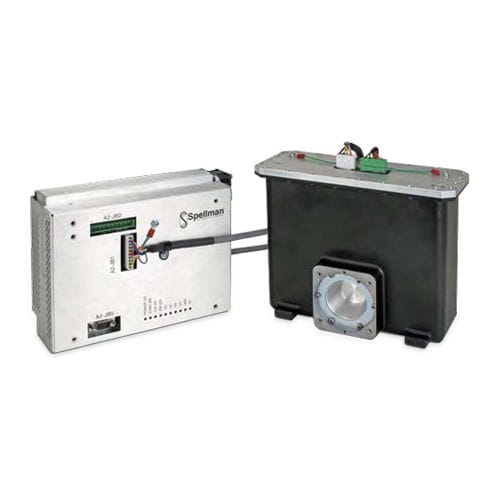

Panoramic radiography X-ray generator PDM90PN900

X-Ray Source with Integrated Filament, Tube and Beam Port Separate Control Electronics Box Compact & Lightweight Analog or Digital Control Interface Spellman’s new Panoramic Dental Monoblock® consists of an integrated X-Ray tube, dual-output high voltage power supply, and filament supply with control circuitry. The PDM90PN900 is designed for extra oral dental X-Ray applications including CT and Panoramic X-Ray. Features like small package size, standard analog and RS-232 digital interface simplify integrating this Monoblock® into your X-Ray system. Proprietary emission control circuitry provides excellent regulation of X-Ray tube current, along with outstanding stability and performance. SPECIFICATIONS X-Ray Tube Characteristics: Target Angle: 5 degrees Focal Spot: 0.5mm nominal Beam Filtration: 3.0mm of Al equivalent Beam Geometry: see page 3 X-Ray Tube Voltage: Nominal X-Ray tube voltage is adjustable between 50kV to 90kV Voltage Regulation: Line: ±0.5% for a ±1V change of nominal input line voltage Load: ±0.1% for a load change of 25µA to maximum rated current X-Ray Tube Current: 1mA to 10mA over specified tube voltage range Current Regulation: Line: ±0.5% for a ±1V change of nominal input line voltage Load: ±0.5% for a voltage change of 35kV to 80kV
