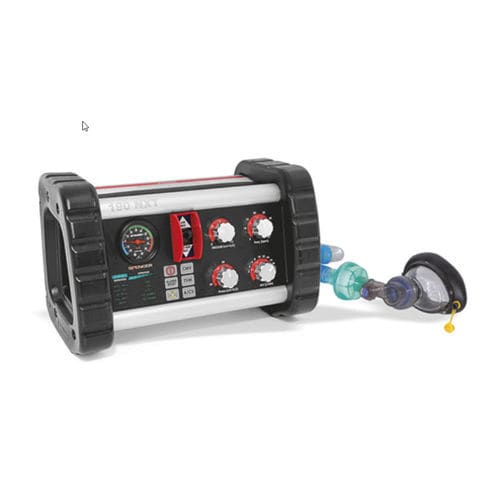

Emergency ventilator 190 NXT

electronictransportnon-invasive

A must-have in emergency vehicle, the 190 NXT can set 3 ventilation modes, is equipped with an LED bar for monitoring breathing, a smart alarm system and a colour coded manometer. PRODUCT DETAILS Dimension:330 x 177 x 210 mm Weight:3,65 kg Ventilation mode:VC-CMV, A/CV, TVM Oxygen concentration:80% or 100% Manometer:From -20 to +80 mbar Frequency:From 5 to 40 bpm Flow:From 2 to 20 L/min Trigger:From -2 to -12 mbar Overpressure valve adjustment: From 20 to 60 cmH2O I/E Ratio:From -20 to +80 mbar Pneumatic connection standard:UNI IP protection:IP24 Pneumatic supply:From 280 to 600 kPa Power supply external:12V cigarette lighter or approved AC/DC adapter 100/240VAC 50-60Hz (Optional) Battery internal type:Internal rechargeable battery Ni-Mh Classification:Class II or internally powered Battery operating time:80 ± 10db Alarms:100" Alarms sound pressure level:80 ± 10db Audio mute time:60cmH2O Applied part:Type BF Non-rebreathing valve:EV01190-N Material:Al, Steel, Brass, PE Dimension:460 x 345 x 150 mm Ventilation mode:VC-CMV, A/CV, TVM Oxygen concentration:80% or 100% Manometer:From -20 to +80 mbar Frequency:From 5 to 40 bpm Flow:From 2 to 20 L/min Trigger:From -2 to -12 mbar Overpressure valve adjustment:From 20 to 60 mbarH20 Manovacuometer precision:1,6 I/E Ratio:1:2 Pneumatic connection standard:UNI IP protection:IP24 Pneumatic supply:From 280 to 600 kPa Power supply external:12V cigarette lighter or approved AC/DC adapter 100/240VAC 50-60Hz (Optional) Battery internal type:Internal rechargeable battery Ni-Mh Classification:Class II or internally powered Battery operating time:About 3 hours Alarms:High pressure – Low pressure – Apnea – Pneumatic supply – Low battery
