Portable patient monitor HDM series

tabletoppressureintracranial pressure

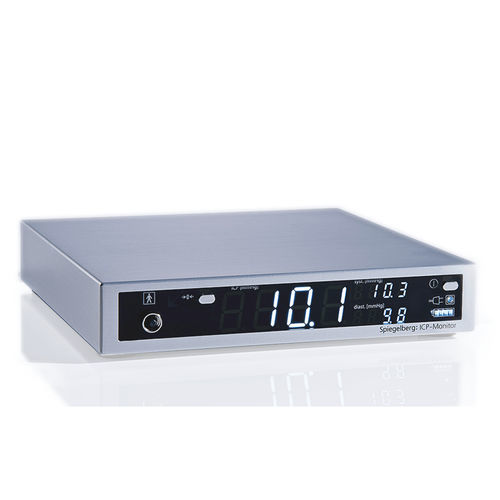

All Spiegelberg ICP monitors have a practical plug-and-play function. After placement of the air-pouch probe, connect it, switch on the monitor and wait for the automatic calibration¹. The latest Spiegelberg ICP monitors come with batteries that last up to 6 hours. Every ICP monitor is compatible with most standard patient monitors. Accurate measuring results & data analysis Spiegelberg ICP monitors run an automatic recalibration process to ensure accurate measurement results¹. A clinical trial² has confirmed that the maximum drift over a period up to 28 days was only +-2 mmHg. ¹ ICP-Monitor internal zeroing; no calibration in the technical sense ² Source: Clinical Evaluation of Intraparenchymal Spiegelberg Pressure Sensor, Congress of Neurological Surgeons, June 2003. The Spiegelberg ICP monitor HDM 29.2, manufactured from light-weight aluminium, provides accurate measurement results and is particularly simple to operate. Technical information Measurement range - 0 to +100 mmHg Power supply - 230V ⚡ 50/60 Hz 115V ⚡ 50/60 Hz Display Mean ICP Value Systolic ICP Value Diastolic ICP Value Mains Power Indicator Connection - Digital Output Socket Patient Monitor Socket
