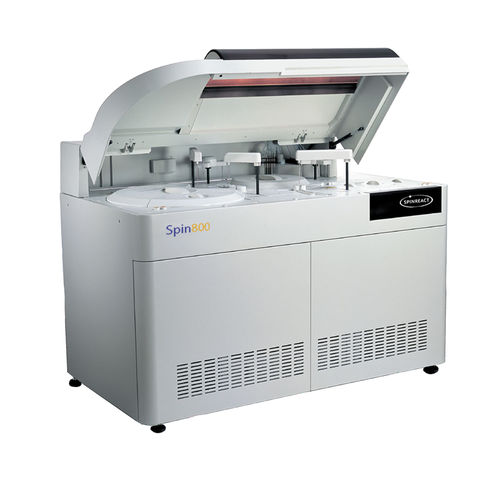

Automatic biochemistry analyzer Spin800

floor-standingwith ISE

800 tests/hour (1200 with ISE) 140 sampling positions 120 reagent positions Sample module option (300 samples) System function: Throughput: Spin 800: 800T/H, up to 1200T/H with ISE Sample handling: Sample tray: 140 positions including 25 cooling positions for calibrators and controls Sample Module: 300 samples capacity with 30 racks Sample volume: 1,5~35 μL, step at 0,1μL Sample probe: Liquid level detection, clot detection and collision protection Reagent handling: Reagent tray: 120 positions in coaxial disks Reagent volume: 15~300 μL, step at 0,5 μL Sample probe: Liquid level detection, bubble detection and collision protection Reaction system: Reaction volume: 100~360 μL Operating temperature: 37°C with 0,1°C fluctuation Optical system: Light source: Halogen tungsten lamp Photometer: Reversed optics, grating photometry Wavelength: 340nm, 380nm, 412nm, 450nm, 505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm Absorbance range: 0~3,4Abs(10mm conversion)
