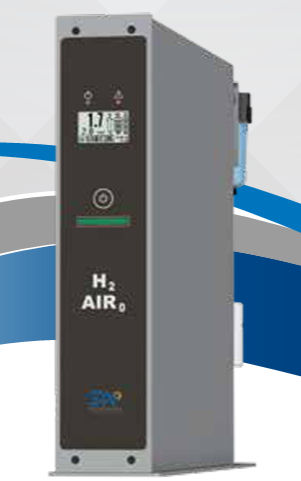

Hydrogen generator HG ST BASIC PEM

humidityfor gas chromatographyfloor-standing

Equipped with PEM technology, flow-rates from 100 cc/min to 3300 cc/min and pressure up to 16 bars, with very high purity. High efficiency self-regenerating dryers operating at constant temperature reduce maintenance costs and ensure constant hydrogen purity. The HydroGen series HG ST BASIC is able to generate up to 350 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG ST BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used. The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG ST BASIC is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit. • GC-FID / GC-NPD / GC-FPD • THA • Gas sensing • Quick installation • Easy use • Hydrogen fow rate up to 350 cc/min • ZeroAir fow rate up to 2000 cc/min • Pressure up to 10 bar (145 psi) • Hydrogen purity: 99.99999% • THC: < 0.1 ppm • RS 485 and USB as standard • LAN optional • Dryer with no maintenance • Reduced foot print • High pressure GLS electronically controlled (patented)
