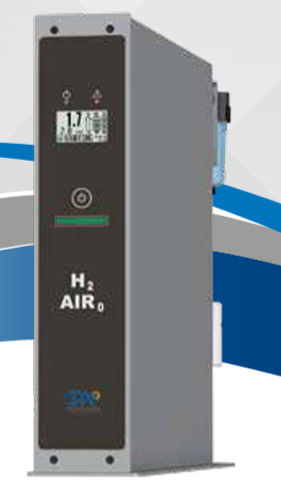

Hydrogen generator HG ST PRO PEM

airfor gas chromatographyfloor-standing

Equipped with PEM technology, flow-rates from 100 cc/min to 3300 cc/min and pressure up to 16 bars, with very high purity. High efficiency self-regenerating dryers operating at constant temperature reduce maintenance costs and ensure constant hydrogen purity. The HydroGen series HG ST PRO is able to generate up to 300 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). An optonal AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HG ST PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG ST PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit • Carrier gas for GC and GS-MS • GC-FID / GC-NPD / GC-FPD • THA • Gas sensing • Quick installation • Easy use • Hydrogen fow rate up to 300 cc/min • ZeroAir fow rate up to 2000 cc/min • Pressure up to 16 bar (232 psi) • Hydrogen purity: 99.99999% • THC: < 0.1 ppm • RS 485 and USB as standard • LAN optional • Dryer with no maintenance • Reduced foot print • High pressure GLS electronically controlled (patented)
