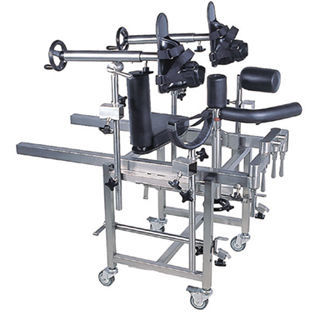

The orthopedic table with a traction device is designed for limb surgery as well as offer excellent features as : Easy patient positioning & Operate, Maximum radiolucent field for free access C-arm photography, durability components constructed by stainless steel .... and
The traction device is designed to facilitate orthopedic procedures, especially good performance for X-ray intensification works.
The T-shaped double joins angle adapter is swing adjustable for easily lateral intensifer position and anterior-posterior without obstruction.
The traction device can be precisely adjusted at any traction degree.
The extensible rails sliding 600mm to fit adult or children.
The sacral support and perineal post made of radiolucent material to enhance C-arm imaging.
The traction device can be easily installed on the table.
1. Curved perineal post
2. Knee crutch
3. Foot traction boots
4. Traction spindle device
5. Extensible rails
6. Cart
7. Double joins angle adapter
8. Wedge-shaped sacral support
9. Supporter
10. Perineal post
11. Leg support
