Polypropylene wheel SERIES315
swiveling

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling - image - 2

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling - image - 3

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling - image - 4

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling - image - 5

Polypropylene wheel - SERIES315 - STEINCO Rollen und Räder - swiveling - image - 6

Add to favorites

Compare this product

Characteristics

Options: polypropylene, swiveling
Load capacity: 70 kg, 210 kg
(154 lb, 463 lb)
Wheel diameter: 100 mm
(3.937 in)

Description

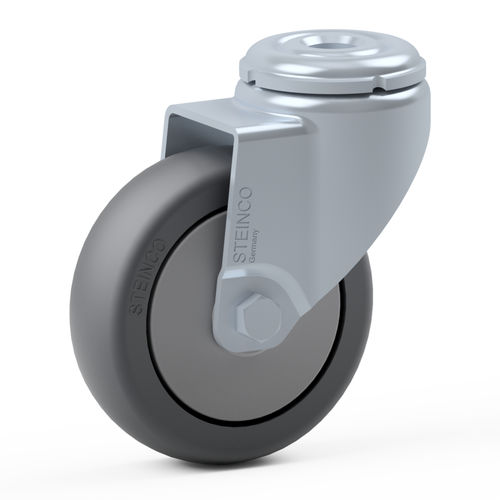

Single wheel swivel castor, Housing made of steel (blue zinc-coated), swivel bearing with double ball bearing, colour: blue zinc-coated Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard Connection via bolt hole M10mm Special functions: cleaning by wipe disinfection possible without restrictions Wheel - Wheel tyres - TPE Wheel width (mm) - 25 Colour of wheel hub/cover - RAL 7004 - Signal grey Material of wheel hub - Polypropylene Wheel hardness - 90 shore A Wheel bearing - Ball bearing Castor - Wheel axle - Steel screwed Offset (mm) - 35 Swivel radius (mm) - 85 Design - Single wheel swivel castor Swivel bearing - Double-row ball bearing Mounting height (mm) - 121 Thread guard - With thread guard Main colour - blue zinc-coated Housing material - Steel (blue zinc-coated) Conductivity - Non-conductive
