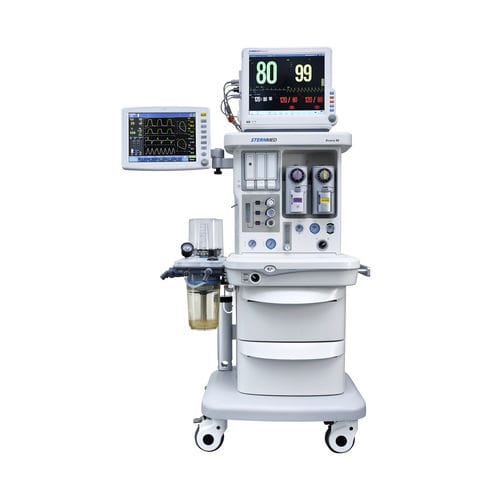

Pediatric anesthesia workstation Avacs 50

trolley-mountedwith respiratory monitoringwith ventilator

Avacs 50 is a versatile and advanced anesthesia workstation for adult and pediatric (over 5 kg) applications equipped with a sophisticated built-in ventilator. Specifications Ventilator E-vent Electronically controlled, pneumatically driven Operating Modes VCV, PCV, SIMV(V)+PS, SIMV(P)+PS, Sigh, Cardio pulmonary Bypass, Spont/CPAP, PRVC, Standby, Manual Breathing frequency 1-100bpm Minute volume (MV) 99 l/min (monitoring), 30L/min (setting) Positive end-expiratory pressure (PEEP) OFF, 4-30 cm Inspiration / Expiration ratio (Ti:Te) 4:1-1:9 (increment:0.5) Pressure limiting (Pmax) PEEP+5-PEEP+70 cm H2O Tidal Volume (Vt) 20-1500ml Inspiratory pause (Tip:Ti) OFF, 5%-50% SIMV Inspiratory time (Tinsp) 1-10S (increment:0.1S) Inspiratory pressure (Pinsp) PEEP+5-PEEP+70 cm H2O Inspiratory flow (InspFlow) 10-80 L/min Pressure Support Level (PPS) 5-60 cm H2O Frequency for and “OFF” Apnea-Ventilation (Freq.Min.) 1-100 bpm Trigger 1-15L/Min Range of fresh gas flow indicators 0-15 l/min Total fresh gas flow meter 0-15 L/min with a mixture of O2, N2O and Air Vaporizer Mount Selectatec ® 2 position either Drager mount or selectatec Continuous monitoring of aspiratory O2 concentration, breathing frequency, tidal volume, minute volume, mean or plateau pressure, peak Airway pressure as well as PEEP. In addition, all fresh gas flow information is displayed in numbers VGA, RS232, RJ45, Debugging communications interface Volume of CO2 absorber 1.5 liter
