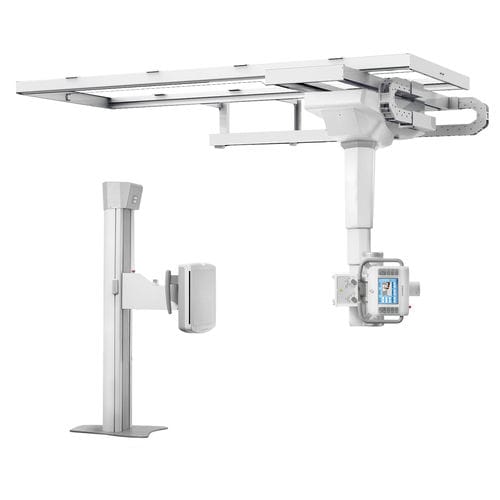

Radiography system Xenox DR500

digitalfor chest radiographyfor pediatric radiography

Xenox DR500 is a versatile and fast ceiling suspension radiography system with an amorphous silicon flat panel providing higher quality images at lower dose. Specifications Lateral range of motion 0～1800mm Vertical range of motion 200mm（Manual） Rotation angle (horizontal axis) of the tube -45 ° ~ 90 °, 0 ° and 90 ° with auto-stop function X-ray tube rotation angle (vertical axis) ± 135 °, every 90 ° locking (manual) Range of detectors movement 400~1820mm Detector rotation angle -20 ° ~ 90 °, electric Remote control motion control with remote control function table The max. loading capacity of the bed is 200Kg Carbon fiber bed panel Brake mode aster brakes Tube voltage range 40~150kV Focus 0.6/1.2mm Anode rotation speed 2700rpm Heat capacity 300kHU Cooling method air-cooled Photography current 10-640mA Generator power 56kW Photography time 1ms-10s Highest KV 150KV Grid control AEC in three directions Detector Pixel matrix 3072(h)X3072(v) Image display time is 8s Features High frequency and high voltage generator Vertical wall stand Mobile carbon fiber radiographic table Advanced imaging system Ergonomic ceiling suspended design Automatic tracing function One-touch positioning function One-key switching function Advanced APR function Pre and Post processing of imaging function Advanced Flat Panel technology-Amorphous Silicon Superior Image Mosaic technology Tissue Equalization technology
