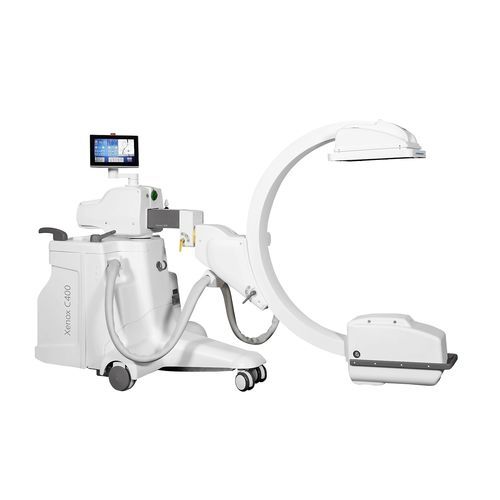

Mobile C-arm Xenox C400

with flat panel detectorwith video columnwith integrated video monitor

Xenox C400 is a highly reliable, durable, and enduring digital mobile system with a flat panel equipped with digital angiographic memory, which makes it suitable for all applications having high diagnostic content. Specifications Horizontal run: manual 210 mm; E-motion 175 mm Motorized Vertical run: 500 mm; 500 mm C-Arm lateral Rotation: ± 140° (± 180° *); + 180°; – 90° (-180° manual) C-Arm orbital Movement: 150° (105°, -45°); 150° (105°, -45°) WIG-WAG: ± 10°; ± 10° Useful space: 810 mm; 810 mm C-Arm Depth: 640 mm; 640 mm Min/ Max Height: 1455 / 1955 mm; 1455 / 1955 mm Min/Max Length: 2085/ 2295 mm; 2110/ 2285 mm Max Width: 800 mm; 800 mm S.I.D.: 1065 mm; 1065 mm *Measure obtained without security mechanical block operating modes and functionality operating modalities of (rtp) memory Continuous fluoroscopy High dose pulsed fluoroscopy Pulsed fluorography Digital snapshot Fluoroscopy ma : (range: 0,5-8 ma) Radiography: 2 points technique (kv and mas) Cine sequence: up to 25 fps. (Included in basic configuration) software base Funtion (live processing) Display of patient data, hospital name, x-ray parameters on operator monitor Recursive filter for noise reduction Dinamic Recursive Filter for patient’s movement compensation Edge enhancement spatial filter Edge enhancement spatial filter Horizontal and vertical image inversion Digital zoom during fluoroscopy mode (new) • Metal detection in manual or automatic mode (new) Continuous digital image rotation Adjustable contrast and brightness Adaptive gamma curve
