Laboratory reactor SQEG080 series

borosilicate glass

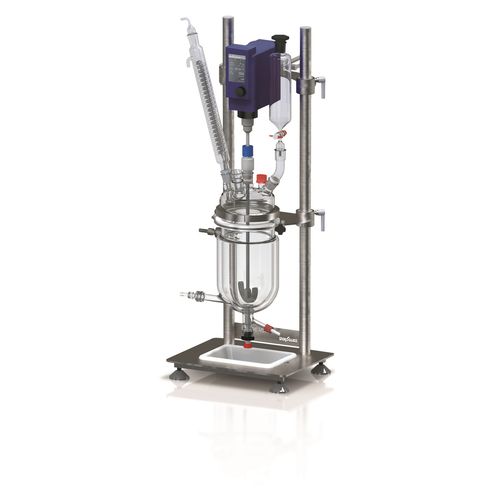

Laboratory reactor with glass lid and Torion valve. An innovative reaction concept made with the same materials used in the chemical process reported in a laboratory scale. Ideal for scale down and scale up processes, it guarantees a quick return on investment for your research projects. The Steroglass Lab reactor has a stainless steel structure that allows to support reactors from 300ml to 7 liters in order to manage varied reaction volumes in a single structure. The vessel and the lid are entirely in 3.3 Borosilicate glass, the gasket between the reactor and the lid is in PTFE as well as the obturator of the bottom valve, the stirring shaft and the stirring seal. Technical features Interchangeable reaction vessels from 300ml to 7 L with DN100 lid Interchangeable reaction vessels from 2L to 7 L with DN150 lid Working temperature: -55°C... 180°C 14 Torion Valve Working volume: 150 ml... 7L 304 Stainless steel structure Each version can be placed under hood Small footprint: ~450x350xH1065 mm CONFIGURATION EXAMPLES Vacuum distillation with reflux head Enzyme digester/reactor at constant pH Lab reactor and filter reactor for crystallization studies Reactor/mixer for formulations and emulsion studies APPLICATION FIELDS Crystallization studies Photochemistry Hydrolysis Precipitation Reactor Mixer Reactions at constant pH Catalytic reactions Enzymatic reactions Reactions under reflux Solvent recovery Synthesis with filtration Nanoparticle synthesis Chemical synthesis Biogas from biomass Bio-reactions Carboxylation Dissolutions/formulations Fractional distillations Distillations Dean Stark Distillations Vacuum distillations Emulsions Esterifications Vacuum evaporations
