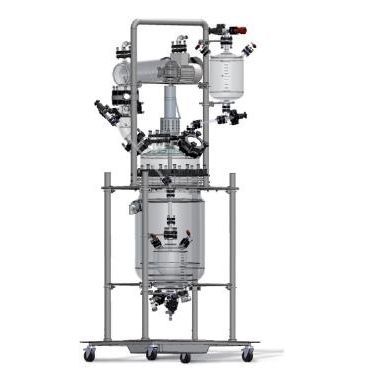

Laboratory reactor SQHK083251

for the pharmaceutical industryborosilicate glass

Steroglass jacketed Pharma Reactors are designed for pharmaceutical use and are FDA compliant, guaranteeing total safety because they do not leave any residue or stagnant liquid. The structure and the industrial stirring system with ultra GMP valve are designed to work in absolute safety. Benefits GMP COMPLIANCE The system has been designed according to GMP standards TOTAL SAFETY No residues or stagnant liquids FOR PHARMACEUTICAL USE FDA compliant (PTFE and borosilicate glass in contact with products) MULTIPURPOSE Ideal for dissolving, mixing corrosive liquids and / or solids, crystallization reactions, polymerization reactions and other applications MATERIALS IN CONTACT WITH THE PROCESS The system is made of borosilicate glass 3.3, sealing elements in PTFE FDA approved COMPACT DESIGN The version up to 20L can be placed under the hood Technical features WORKING CONDITIONS: Design Temperature : -50 °C / 200 °C Delta temperature : 80 °C Design Pressure : -1mbar / 0,5 barg Max vacuum: 5 mbar Abs REACTION GROUP DN400 Jacketed vessel; 50L nominal capacity; DN400 Glass lid 7 necks: a) DN50 Central for stirring; b) DN80 with closure for solid loading; c) DN25 for liquid inlet; d) DN50 for vapour line; e) DN40 closed and free (on request); f) DN40 closed and free (on request); g) DN40 closed and free (on request); AISI304 Stirring shaft, PTFE-coated; PTFE Stirring anchor blade; PTFE/glass mechanical seal ATSA50/26; 25mm discharge bottom valve, Gmp compliant.
