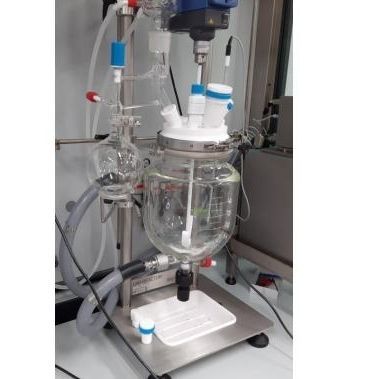

Laboratory reactor SQEG080260

borosilicate glass

Laboratory reactor with glass lid and Torion valve. An innovative reaction concept made with the same materials used in the chemical process reported in a laboratory scale. Ideal for scale down and scale up processes, it guarantees a quick return on investment for your research projects. The Steroglass Lab reactor has a stainless steel structure that allows to support reactors from 300ml to 7 liters in order to manage varied reaction volumes in a single structure. The reactor is made in 3.3 Borosilicate Glass, the lid is in PTFE as well as the obturator of the bottom valve, the stirring blade and the seal of the stirrer. The PTFE lid, in addition to its high chemical resistance, thanks to the presence of multiple connections, allows maximum working flexibility. The PTFE / GLASS coupling guarantees maximum tightness, inertia to corrosion and avoids any type of glass breakage during assembly / disassembly. Technical features Interchangeable reaction vessels from 300ml to 7 L with DN100 lid Interchangeable reaction vessels from 2L to 7 L with DN150 lid DN100 PTFE lid has 6 connections DN150 PTFE lid has 9 connections Working temperature: -55°C... 180°C 14 Torion Valve Working volume: 150 ml... 7L 304 Stainless steel structure Each version can be placed under hood Small footprint: ~450x350xH1065 mm CONFIGURATION EXAMPLES Vacuum distillation with reflux head Enzyme digester/reactor at constant pH Lab reactor and filter reactor for crystallization studies Reactor/mixer for formulations and emulsion studies
