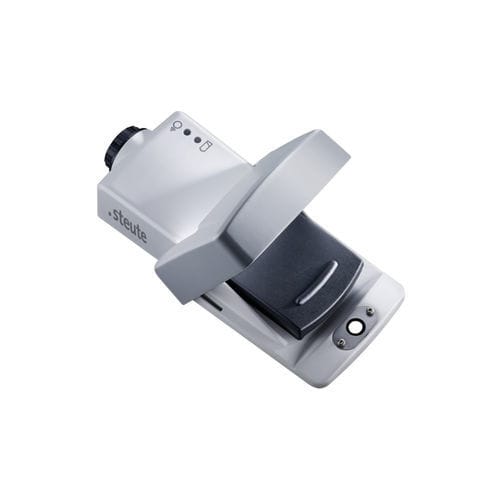

Medical laser footswitch MKF SW2.4LE-MED SK13

electricsinglewireless

Developed for the actuation of surgical or cosmetic laser devices to IEC 60601-2-22 Latchable protective guard prevents unintended actuation of control unit Wireless signal transmission via steute wireless low energy LED indication of status Power supply via 3 batteries type AA Battery compartment can be opened by hand Technical data Applied standards IEC 60601-1; ANSI/AAMI ES60601-1; IEC 62304; IEC 60529 Pedal shock-proof thermoplastic, UL 94 V-0/V-2 Enclosure shock-proof thermoplastic, UL 94 V-0, RAL 7035 Degree of protection IP X8 to IEC/EN 60529 Switching elements reed contact / micro switch / Hall sensor Switching system 1 – 2 NO contacts Mechanical life > 1 million operations Voltage supply 3 commercially available batteries, Typ AA Antenna internal antenna Wireless range 10 m (typical) Radio technology Frequency 2,4 - 2,4835 GHz Channel bandwidth 2 MHz Modulation principle GFSK, adaptive frequency hopping of 40 channels HF data rate 1 Mbps Interface data rate 115,2 kBd (UART) Output power 3 dBm - 7 dBm Input sensitivity -93 dBm Conformity Global: cCSAus IEC 60601-1, -1-2, -2-22, -2-43 Europe: CE EN 300 328; EN 62479; EN 301 489-1; EN 62368-1 USA: FCC Title 47 CFR, Part 15 Canada: IC RSS-247, Issue 1 Japan: ARIB STD-T66 Note Since this article is part of a medical product, it can only be validated in combination with the overall system. Proof of conformity to the Medical Device Regulation (MDR 2017/745) can therefore only be handled by the customer marketing the system. At the request of the customer, steute can affix a CE mark with the 4-digit number of the appropriate notified body.
