Dental unit footswitch MKF-MED SK12

electricsingle

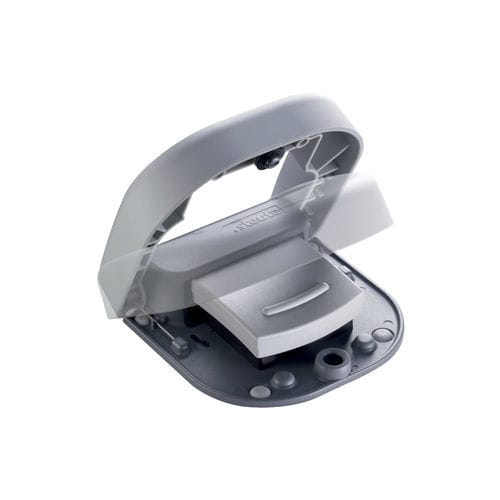

The special highlight of the variant MKF-MED SK12 with movable protective shield is the low height and the protection against accidental actuation in closed position.A quick actuation of the protective shield is sufficient to enable the operating mode. This variant is suitable especially for transportable laser units. Robust fibreglass-reinforced plastic foot control GRP protective flap provides maximum protection from unintended actuation (IEC 60601-2-22) Minimal design Waterproof: IPX8 (IEC 60529) Digital or analogue output signals available Different RAL colours available Technical data Applied standards IEC 60601-1; ANSI/AAMI ES60601-1; IEC 60529 Pedal shock-proof thermoplastic, UL 94 V-0/V-2 Protective flap shock-proof thermoplastic, UL 94 V-0, RAL 7035 Housing GD-Zn alloy, RAL 7035 Degree of protection IP X8 to IEC/EN 60529 Switching elements reed contact / micro switch / Hall sensor Switching system 1 – 2 NO contacts / 1 change-over / analogue output 0 … 10 VDC, 0 … 20 mA, 4 … 20 mA Mechanical life > 1 million operations Connection 2 m cable, other lengths optionally available Switching voltage max. 25 VAC / 60 VDC Switch-on current max. 1 A Switching capacity Reed contacts: max. 20 VA, micro switch: max. 30 VA Supply voltage Hall sensor 15 … 30 VDC / max. 25 mA
