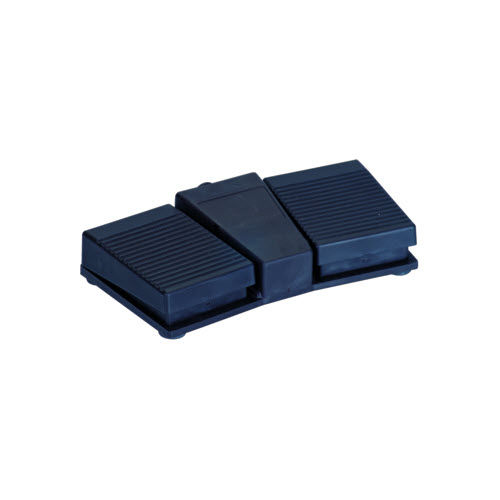

Dental footswitch KF 2-MED GP25

electricdouble

Robust fibreglass-reinforced plastic foot control Fibreglass-reinforced plastic housing Waterproof: IPX8 (IEC 60529) Stainless steel carrying handle (optional) Digital or analogue output signals available Technical data Applied standards IEC 60601-1; ANSI/AAMI ES60601-1; IEC 60529 Pedal shock-proof thermoplastic, UL 94 V-0, black Housing shock-proof thermoplastic, UL 94 V-0, black Degree of protection IP X8 to IEC/EN 60529 Switching elements reed contact / micro switch / Hall sensor Switching system 1 – 2 NO contacts / 1 change-over / analogue output 0 … 10 VDC, 0 … 20 mA, 4 … 20 mA Mechanical life > 1 million operations Connection 2 m cable, other lengths optionally available Switching voltage max. 25 VAC / 60 VDC Switch-on current max. 1 A Switching capacity Reed contacts: max. 20 VA, micro switch: max. 30 VA Supply voltage Hall sensor 15 … 30 VDC / max. 25 mA
