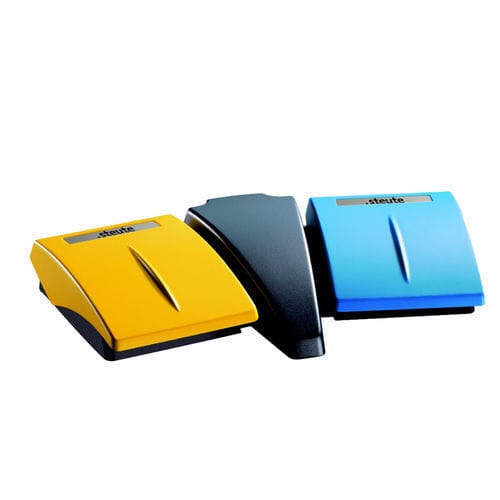

Surgery unit footswitch VKF 2-MED

electricdoublecompact

The VKF 2-MED foot control was especially developed for the high demands of medical equipment: a solid foot control with an ergonomic design for reliable switching functions. The wedge-shaped central bar prevents accidental simultaneous actuation of both pedals and additionally serves as a foot rest. The switch is narrow, measuring 223 x 142 x 32 mm, and yet stable. Highlights Affordable High mechanical stability Compact design Up to 2 switching functions per pedal Normally open or changeover contacts Waterproof: IPX8 (IEC 60529) High quality and cost efficiency This control is also well-suited to costsensitive applications, without any reductions in quality, reliability or ergonomic comfort. The ergonomic design of the new foot control is immediately apparent. The enclosure is made of high-quality thermoplastic which surpasses the shock resistance requirements of IEC 60601-1. The wedge-shaped central bar prevents accidental simultaneous actuation of both pedals; and between actuations it can be used as a foot rest. Pedals can optionally be fitted with two micro switches and pressure points to allow for a two-step actuation and to give the user tactile feedback. Technical data Applied standards IEC 60601-1 Pedal shock-proof thermoplastic, UL 94 V-2 Housing shock-proof thermoplastic, UL 94 V-0 Degree of protection IP X8 to IEC/EN 60529 Switching elements micro switch Mechanical life > 200 000 operations Connection 3 m cable, other lengths optionally available Switching voltage max. 25 VAC / 60 VDC Switch-on current max. 1 A Switching capacity max. 30 VA
