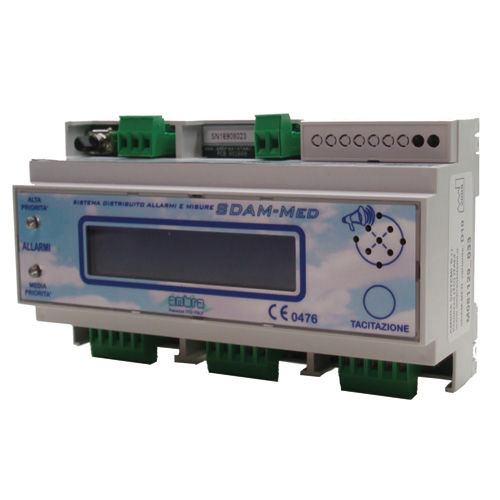

Area medical alert system SDAM-MED R

for medical gas

REPEATER ALARM UNIT FOR SDAM-MED D10 OR SDAM-MED A5 UNITS SDAM-MED R support the following functions : •Repeater unit for SDAM-MED D10 and SDAM-MED A5; •Indications of the reference unit; •Display with 2 lines x 20 characters with LED backlight; •Yellow and red alarm lights associated to medium and high priority alarm status; •Alarm recovery time adjustable from 1 to 15 minutes, independently from the reference unit; •Auxiliary output switches for external cumulative alarm indicators or hooters; •Proprietary SDAMNET network and protocol; •Programming by Windows software application SDAM Programming Tool; •Automatic configuration by self-learning function; •Optical and acoustic indication about alarm status in accordance with European standard ISO 7396-1 and EN 60601-1-8. LOCAL REPEATER FOR NETWORKS CONSTITUTED BY SDAM-MED AND/OR SDAL-MED SDAMGUARD-MED support the following functions : •Data exchange from up to 253 SDAM-MED and/or SDAL-MED units to RS485 local SDAMNET network; •Monitoring and alarm classification in accordance with operating parameters assigned to the corresponding SDAM-MED and/or SDAL-MED unit; •Origin of the information notified by the ID assigned to each SDAM-MED and/or SDAL-MED units; •Wide display with 4 lines x 20 characters with led backlight; •Yellow and red alarm lights for clinical and operative alarm status; •Alarm acoustic signal with acknowledge pushbutton (Alarm ACK); •Alarm recovery time adjustable from 1 to 15 minutes; •Programming by a pushbuttons on the front panel; •Automatic configuration by self-learning function; •Visual indications for communication in progress and fault conditions;
