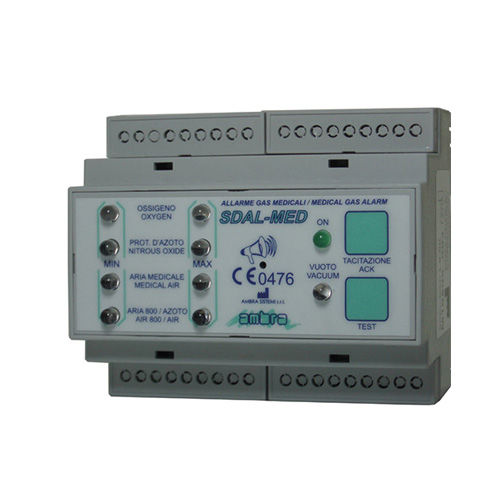

Area medical alert system SDAL-MED L5

for medical gas

ALARM SIGNALING UNIT FOR GAS DISTRIBUTION PIPELINE SDAL-MED L5 support the following functions : •No.5 digital inputs ON/ OFF (pressure switches) with the following confi guration: L/ H alarm pressure O2, Med. Air or Evac. Air, CO2 and Low Vacuum; •Alarm notifi cation by 5 red Leds for high priority; •Alarm recovery function after 15 minutes by a dip-switch; •Test button; •Programming jumpers for selection of input operation N.O. or N.C.; •Auxiliary output switches for external cumulative alarm indicators; •Auxiliary output switches for external hooters; •No.5 independent outputs reproducing the input status; •RS485 local SDAMNET or Modbus network interface and protocol (option); •Network address programming by a dip-switch; •Optical and acoustic indications about alarm status in accordance with European standard ISO 7396-1 and IEC 60601-1-8. ALARM SIGNALING UNIT FOR CENTRAL GAS STORAGE SDAL-MED L5C support the following functions : •No.5 digital inputs ON/ OFF (pressure switches) with the following configuration: Low pressure L/ R bank, H/ L line pressure and Low Vacuum; •Alarm notification by 5 red Leds for high priority; •Alarm recovery function after 15 minutes by a dip-switch; •Test button; •Programming jumpers for selection of input operation N.O. or N.C.; •Auxiliary output switches for external cumulative alarm indicators; •Auxiliary output switches for external hooters; •No.5 independent outputs reproducing the input status; •RS485 local SDAMNET network or Modbus protocol (option); Network address programming by dip-switch; •Optical and acoustic indications about alarm status in accordance with European standard ISO 7396-1 and IEC
