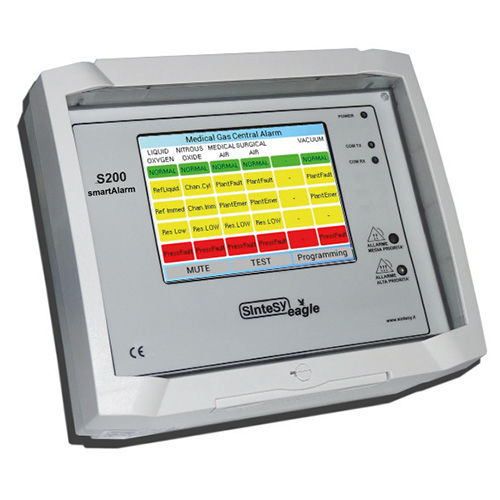

Area medical alert system S200

for medical gas

The SINTESY.eagle.S200.smartAlarm is a medical device capable to control up to 24 input signals coming from 6 different gas sources. The S200.smartAlarm is certifi cated according to European Directive 93/42/EEC and 2007/47/EC, identifi ed in Class IIb following the prescription of Annex IX, rule 9 and satisfies the requirements of EN7396-1. It also comply with requirements of HTM 02-01. Alarms are shown on a 5.7” LCD color screen and they consist of text messages pre programmed by the installer. The text contains the description of the alarm with different colors. Each gas service consists of a bank of fi ve indications: - green, for a Normal condition - three yellow (customizable messages on LCD) - red (customizable messages on LCD) Each gas service inputs are connected to a fi ve way connector block. The S200.smartAlarm can be used SLAVE device connected, by the RS485 bus, to a industrial PC (running the SINTESY.eagle software) or to another S200.smart in MASTER mode. All settings of the terminal can be done in two different ways: - By the RS232 serial communication port connected to a PC (see SINTESY.eagle.wizard software). - By editing a fi le saved into the internal SD-CARD. Inside the SD-CARD, there is also a customizable bitmap with the logo of the customer or distributor A test function (soft key on the touch screen panel) is used to check the integrity of all indicators on the panel, and the audible alarm. The test function also provides diagnostic information to help in case of fault condition.
