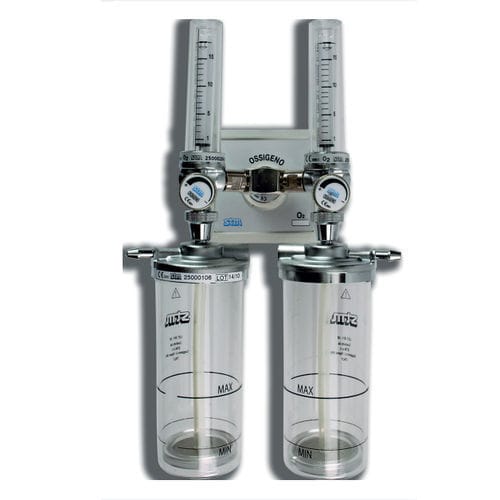

Double flow meter
oxygenairfor hospitals

double flow meter
double flow meter
Add to favorites
Compare this product


Characteristics

Type
double
Fluid type
oxygen, air
Applications
for hospitals
Connection type
plug-in type
Options and accessories
with humidifier
Output

Min.: 0 l/min
(0 us gal/min)

Max.: 30 l/min
(7.9252 us gal/min)

Weight

1,240 g
(44 oz)

Description

FLOWMETER, double type, with downstream flow regulation, with humidifiers, available for Oxygen and Medical Air. Constituted by: Probe for the connection to the terminal unit (standards available AFNOR, DIN, BS and UNI). Flowmeters each one composed by: Nickel- plated body with 9/16 tube-holder nipple Nickel-plated brass tap Graduated tube, scale 1 to 15 lt/mnt with a metal floater for a precise flow lecture 300 cc humidifiers each one composed by: Nickel-plated brass tap with tube holder nipple and safety valve steel net diffuser, makrolon jar sterilizable 121°c per 15 minutes
