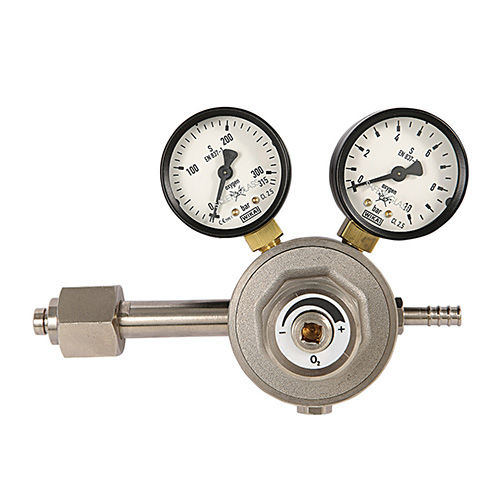

Medical gas pressure reducer
single-stage

medical gas pressure reducer
medical gas pressure reducer
Add to favorites
Compare this product


Characteristics

Fluid type
medical gas
Number of stages
single-stage
Flow

28 m³/h, 40 m³/h
(988.81 ft³/h, 1,412.59 ft³/h)

Inlet pressure

4 bar, 8 bar
(58 psi, 116 psi)

Output pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116 psi)

Weight

1,300 g
(45.9 oz)

Description

First stage pressure reducer for cylinder, high load Nickel – plated brass body Safety valve Gauge range 0-315 or 0-160 bar ( HP ) Gauge range 0-16 bar ( LP ) Outlet fi tting hosetail 6 mm. Temperature range – 15 ° + 60 ° C
