- Medical gas pressure regulator
- STM - Sistemi Tecnologie Medicali

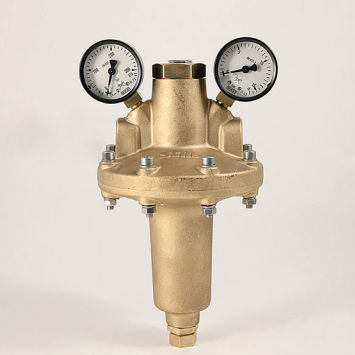

Medical gas pressure reducer second stage
Add to favorites
Compare this product
Characteristics
- Fluid type
- medical gas
- Number of stages
- second stage
- Flow
38 m³/h, 45 m³/h, 70 m³/h
(1,341.96 ft³/h, 1,589.16 ft³/h, 2,472.03 ft³/h)- Inlet pressure
4 bar, 5 bar, 6 bar
(58 psi, 72.5 psi, 87 psi)- Output pressure
Max.: 8 bar
(116 psi)Min.: 0 bar
(0 psi)- Weight
5,600 g
(197.5 oz)
Description
Second stage pressure reducer, high load
Brass body
Safety valve
Inlet connector 1/2” gas F
Gauge range 0-16 bar
Gauge range 0-10 bar
Outlet connector 1/2” gas F
Temperature range – 15 ° + 60 ° C
