Monolock fixation system
Fixation system according to DIN EN 1865 & 1789 for carriages.
The monobloc with central fixation pin (Art.-No. 4501) is needed on the carriage.
The components for the fixation in the ambulance are a lock box for the central fixation pin (Art.-No. 4502) and a frame (Art.-No. 4503).

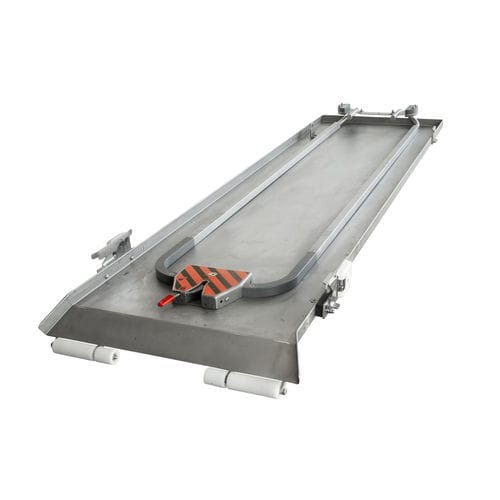

The depicted steel platform is not part of our offering. This is contributred by the vehicle builder according to EN1789 & EN1865.
LENGTH - 1720 mm
WIDTH - 360 mm
WEIGHT - ca. 5 kg
